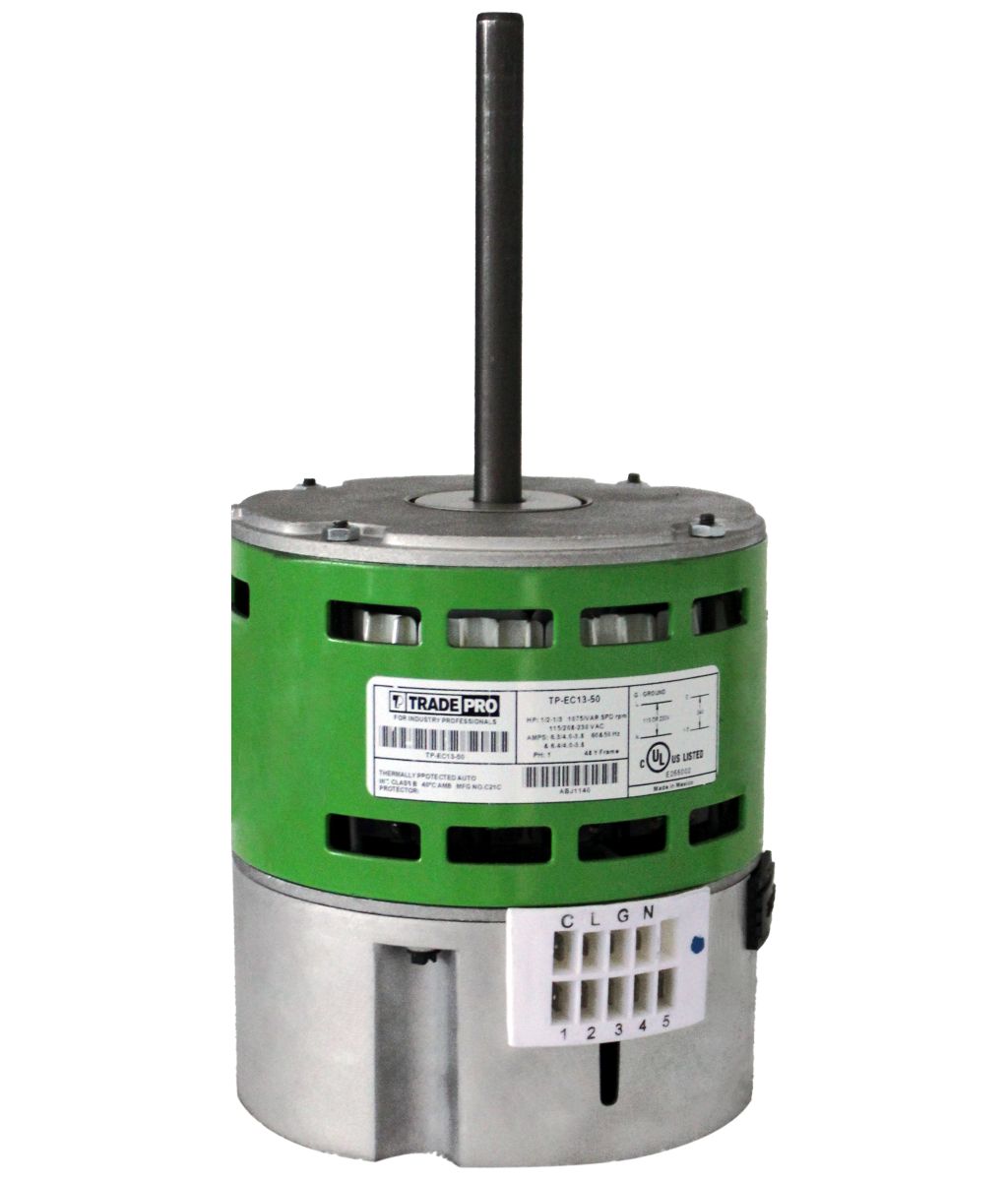

TP-EC13-75 - Blower Motor, X-13 ECM, Variable Speed, 1075 RPM, 115/208-230 V, 9.3/5.8-5.4 Amps, 3/4 HP
TRADEPRO® - Universal ECM Replacement for Furnaces and Air Handlers. Improved Reliability with built-in 6,000 Volt surge protection and industry-leading moisture protection.Replaces X13, Endura Pro and SelecTech constant torque ECMTruck StockUniversal ReplacementReady to InstallReplaces Thousands of OEM ModelsPre-programmed with Universal Program, No Programming required SpecificationsInputs: 24VAC, Tap InputsRotation: Auto-Rotation SensingHertz: 60 and 50HzOperation Mode: Constant Torque - NEMA 48 Frame, Open Air Over (OAO) Enclosure, Belly-band MountingUp to 82% Efficiency
Product Specifications
Product Specifications
SKU:
TP-EC13-75
Amps:
4-9.3
Basis Of Rotation View:
Lead End
Bearing Type:
Ball
Brand:
TRADEPRO®
Country of Origin:
MEX
Cubic Measurement:
0.8716
Cycle/Hertz:
60 Hz
Dimensional Weight:
5
Duty:
(S1) Continuous Running Duty
Insulation Class:
B
Motor Enclosure:
Open Air Over (OPAO)
Motor HP:
3/4
Motor Type:
ECM (Electronically Commutated Motor)
Mounting Type:
Belly Band
NEMA Frame:
48Y
Number of Speeds:
Variable
Phase:
Single
Poles:
10
Prop 65:
No
Rotation:
Reversible
RPM:
1,075
Shaft Diameter:
0.5" (1/2")
Shaft Length:
5.0"
Substantial Commodity:
Steel; Copper
UPC:
786382142476
Voltage:
115/208-230 VAC
Weight:
12
